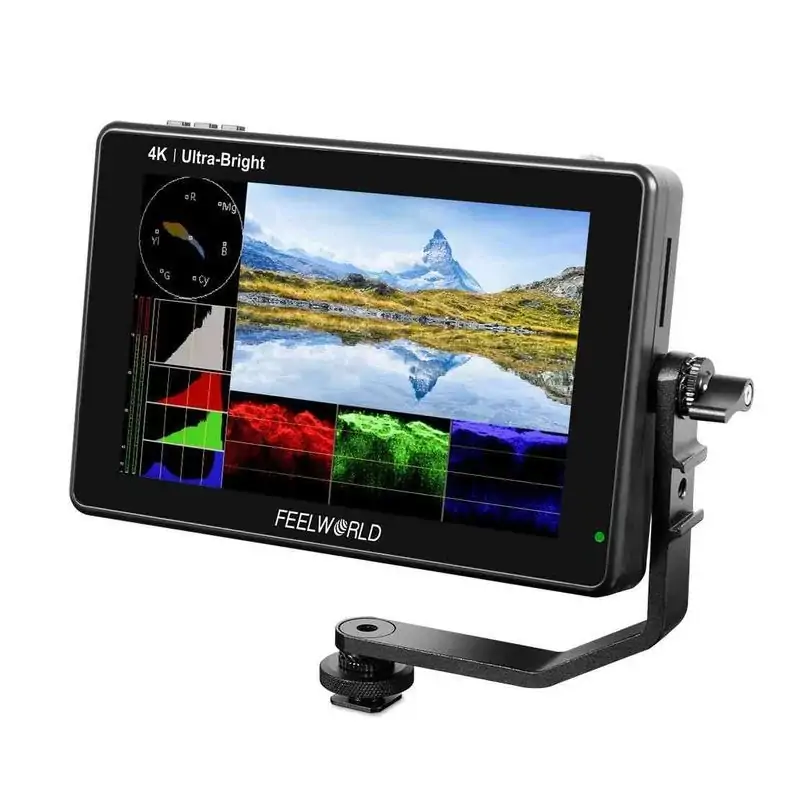

Featuring a 323 PPI (pixels-per-inch) IPS LCD panel, the LUT7 7" 4K HDMI Monitor from Feelworld displays SD, HD, UHD, and DCI 4K video. The LCD panel boasts a 1920 x 1200 resolution, 16:10 aspect ratio, 1200:1 contrast ratio, and a 2200 cd/m² measured brightness for easy viewing outdoors as well as indoors. The touchscreen allows you to quickly access your settings, and the IPS LCD provides good off-axis viewing, allowing you to see the image without being directly in front of the monitor and not experiencing distorted colors or contrast. The monitor's chassis is both thin and light at about an inch thick and weighing only 1 lb.

On the side of the monitor you'll find HDMI input and output connectors, and on the other side there is a 3.5mm headphone output, a 12 VDC 2.1mm barrel power input (AC adapters and batteries not included), and an 8.4 VDC 2.1mm barrel power output to power an optional accessory or your camera using a separately available cable or dummy battery. Along the bottom edge is the 1/4"-20 mounting thread, and the control buttons reside along the top edge of the monitor. The back of the monitor features a dual L-series/NP-F battery plate to provide ample power.

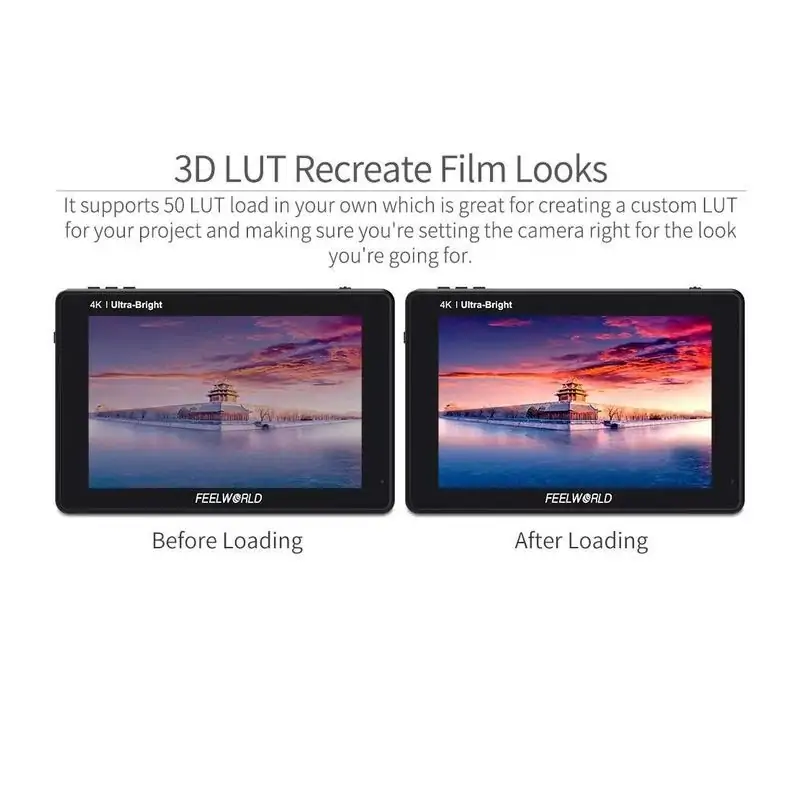

The LUT7 supports custom 3D LUTs to accurately view the camera color on screen, and it supports professional Rec.709 color calibration technology. A variety of image evaluating tools are built into the monitor including a histogram, false color, and zebras for checking exposure, peaking and magnification for checking focus, and markers for ensuring correct framing.

Key Features High-resolution 1920 x 1200 High-contrast of 1200:1 Ultrabright 2200 cd/m² 160° wide-view-angle IPS Panel Histogram Peaking focus assist (red, green, or blue highlight over parts of the image in focus) False color Zebra exposure Nine-grid Embedded audio Scan mode (underscan, overscan) Zoom (4x, 9x, 16x) Anamorphic mode (1.3x, 2x, 2x mag) Pixel-to-pixel Center marker Safe area (80, 85, 90, 93, 96%, 2.35:1) Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1) Marker color (red, green, blue, white, black) Check field (red, green, blue, mono) Image flip (H, V, H/V) Image freeze Color temperature adjustment Dual rear battery mount is compatible with Sony L-series/NP batteries: F-970, F-960, F-950, F-930, F-770, F-750, F-730, F-570, F-550, F-530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, F-M71, F-M70 series. Alternate power options include a 12 VDC 2.1mm barrel input (with separately available adapter) and an 8.4 VDC 2.1mm barrel output to power your camera or accessories using an optional cable or dummy battery FEELWORLD uses the professional Rec.709 HD color standard and is calibrated at the factory. It can achieve monitor calibration efficiently and get accurate color reproductions easily, showing the image when you shoot without distorting the color. The menu controls are intuitive and easy to use with its touchscreen design. Two different feature buttons are programmable to the various features that you use the most. The compact design includes 4K HDMI input/output so you can connect them to 4K cameras and DSLRs. The HDMI connection is compatible up to 4K24p. Load custom 3D LUTs using the integrated SD card slot. Histogram is a quantitative tool to check the picture brightness. The audio level meters provide numerical indicators and headroom levels. The peaking filter displays a colored highlight on the screen where sharp edges appear. Built-in selection of no-squeeze, 1.3x, or 2x allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not desqueeze in-camera.

Package Include

Standard Accessories:
1× Mini/ Micro HDMI to HDMI Cable
1× Tilt Arm
1× Manual

Panel Type	IPS-Type LCD
Display Size	7.0" / 17.8 cm
Resolution	1920 x 1200
Aspect Ratio	16:10
Viewing Angle	Horizontal: 160° (80/80)
	Vertical: 160° (80/80)
Touchscreen	Yes
Maximum Brightness	2200 cd/m2
Contrast Ratio	########
HDR Compatibility	None
Pixels Per Inch (ppi)	323 ppi
Image Controls	Anamorphic De-Squeeze, Check Field, Focus Peaking, Histogram, Image Flip, Marker Color, Pixel-to-Pixel Zoom, RGB Parade, Scaling, Screen Markers, Vectorscope, Waveform
I/O
Video	1 x HDMI Type A (HDMI 1.4) Input
	1 x HDMI Type A (HDMI 1.4) Output
Audio	1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	1
Power	1 x 2.1 mm Barrel (12 VDC) Input
	1 x 2.1 mm Barrel (8.4 VDC) Output
Wi-Fi	None
Format Support
Video Format	HDMI
	DCI 4K: 24
	UHD 4K: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50/30/29.97/25/24/23.98
	576p: 25
	480p: 29.97
	576i: 50
	480i: 59.94
	SDI
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 24/23.98
	1080i: 60/59.94/50
	576i: 50
	480i: 59.94
Power
DC Input Power	7 to 24 VDC at 2 A
Battery Type	2 x L-Series (Interchangeable Mount)
Power Consumption	20 W
Mounting
Mounting	1 x 1/4"-20 Female
Environmental
Operating Temperature	-4 to 122°F / -20 to A50°C
Storage Temperature	-22 to 140°F / -30 to 60°C
