The magped safety bike pedal is a true innovation for mountain bikes and e bikes. Our patented magnet mechanism makes quick and simple release of the foot from the pedal possible at any time. In comparison to standard click in pedals the risk of crash and injury will be reduced to a minimum – and your head stays free for a hassle free biking experience without fear.

ENDURO / ALL MOUNTAIN / DOWNHILL

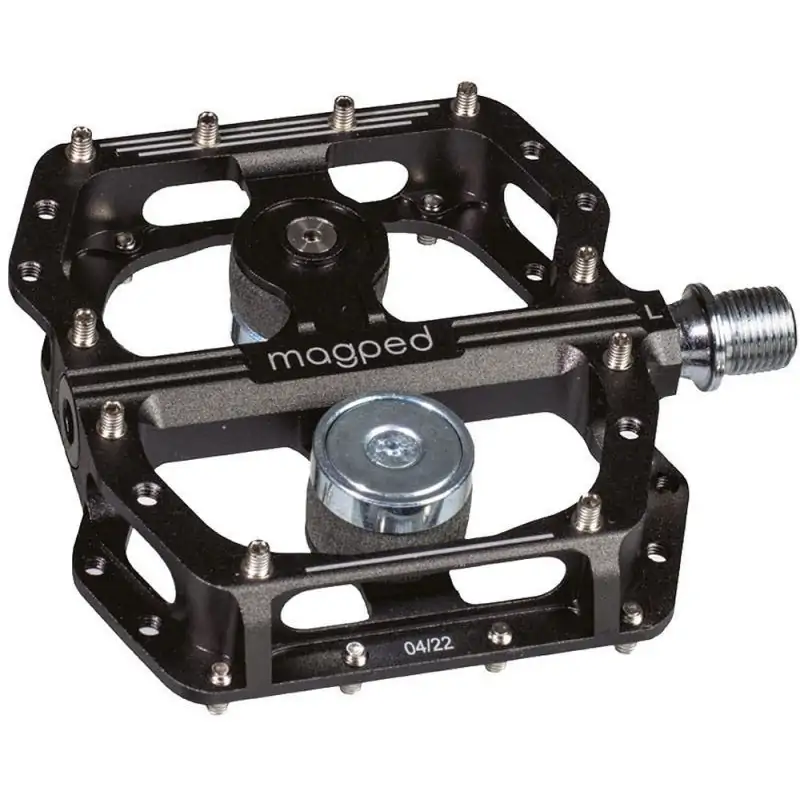

Enduro 2

Our best-selling, extremely robust, double-sided magnetic pedal for trail, enduro and downhill has been revised and is now even better than ever. The ENDURO2 is CNC machined from an aluminum block and is 23% lighter, wider and stronger than the original. It also features improved and sharper 9mm/11mm SWITCH pins.

Circular motion

The magped pedal ensures a continuous circular tread by employing your extensor muscles (70%) as well as your flexor muscles (30%) for maximum riding performance. You will feel the difference especially on longer rides.

Weight

The magped pedal is a modern high quality flat pedal made from light CNC cut aluminium with a CrMo or Titanium spindle. All magped pedals are highly weight competitive to other high end pedals – in spite of the added magnet system.

Positioning

The pedal allows for several degrees of twist of your foot and therefore provides less strain on your ankles during your rides. In addition the foot position can be varied to the front or back without a loss of pulling force for an ideal position on your ascend and your descend.

Pulling Force

Depending on your choice of pedal the magnet will connect you up to approx. 18 kg in pulling force (150 magnet). The force deploys primarily in a downward force and therefore a quick and simple release with a sideways move of your foot is possible practically without effort. But even in more critical situations the pulling force can be overcome without difficulties in a vertical direction as well.

Shoe plate

The shoe plate is made of anti corrosion treated steel and it is compatible with all SPD bike shoes. The shoe plate can be mounted very easily within a few minutes with 2 screws (ROAD 3 screws). In comparison to other systems the magped pedal is insensitive to dirt. Additionally the “walkability” of your bike shoe will be significantly improved.

Technology

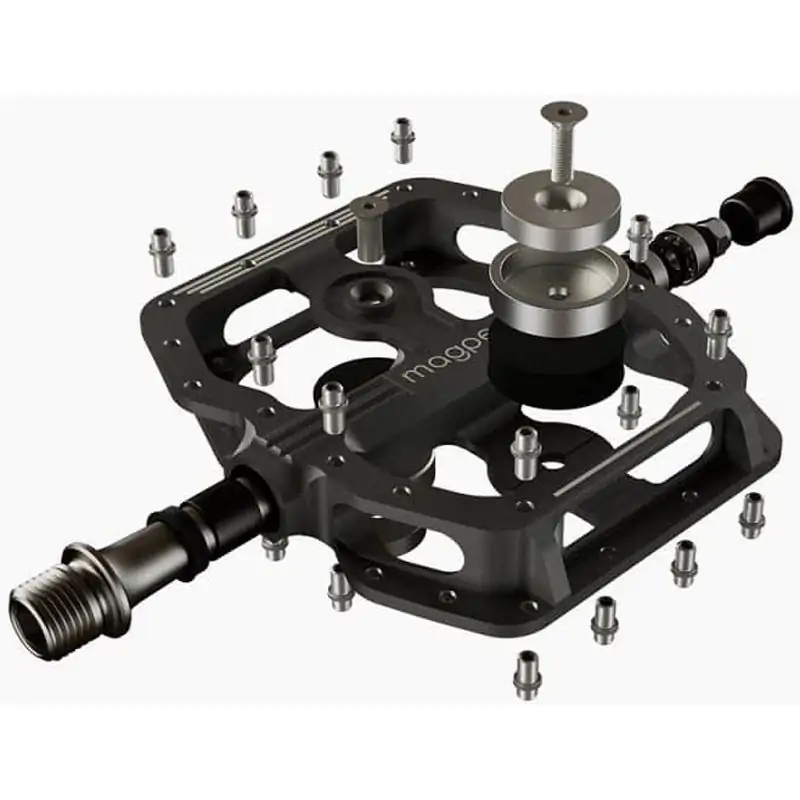

The magped pedal is equipped with 3 sealed high quality industrial type bearings. Pins can be exchanged if required. The high performance neodymium magnet is adjustable by means of an integrated polymer damper unit.

Magped magnet pedals are not equipped with a firm mechanical connection comparable to standard clipless pedals. The magnetic force is impacted by several factors e.g. magnet size, dirt, wear and direction of force applied. An unintended disconnection from the pedals is possible at any point of time.

Magnet size recommendation:

• 150N for biker 65-90 kg
• 200N for biker >75 kg


Inside The Box:

• A Pair magped ENDURO2 pedals (L+R)
• Magnets
• Metalic plates for SPD shoes
• Magnetic screws in 2 lengths
• Allen key
• 50 steel pins
