Experience sound and color

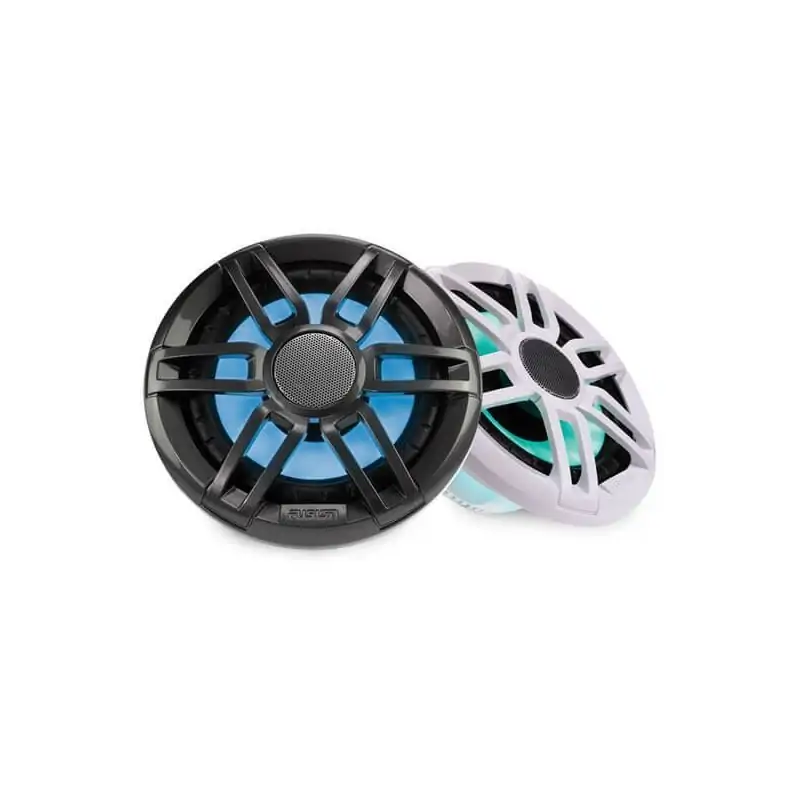

Enjoy high-performance acoustics and enhanced protection from the environment all at a midrange price point with the XS Series speakers from Fusion.

• Experience multicolor RGB LED lighting to brighten up your boating experience.
• The injection-molded polypropylene cone provides clean, clear audio reproduction.
• The aluminum dome tweeter provides a smooth upper frequency response and increased efficiency.
• With an increase in real power, the voice coil provides a high-quality sound experience.
• The speakers are available in 4”, 6.5” and 7.7” designs with both classic and sports style2 grilles.
• Engineered to last season after season, the speakers include a 3-year warranty.

Designed and engineered to true-marine standards

Built on the True-Marine design philosophy from Fusion, the XS Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV. Tested to international standards (iso12216) for pressure and water ingress, the XS Series speakers are designed and built for superior quality and robustness. The XS Series speakers incorporate high-quality materials and marine-specific design elements. This communicates not only their enhanced aesthetics but also their ability to reproduce high-performance audio while out on the water.

Better Acoustic performance

The aluminum dome tweeter provides a smooth upper frequency response and increased efficiency, which deliver crystal-clear music reproduction. The overhung design reduces distortion and increases power and efficiency to deliver a truly high-quality sound experience. Fully sealed crossover components provide increased protection from the harsh marine environment. This delivers an improved frequency response at the crossover point for a detailed audio spectrum and a new level of acoustic performance. The optimized open back design allows for extended power handling and versatile mounting options with reduced mounting depth.

Specifications

• Physical dimensions (Diameter x Depth): 177 x 81 mm
• Water and dust rating: IP65
• Configuration: Coaxial
• Speaker size: 6.5"
• Peak power (Watts): 200 W
• RMS power (Watts): 50 W
• Sensitivity (1 W / 1 m): 91 dB
• Frequency response: 80 Hz-18 kHz
• Nominal impedance: 4 ohms
• Recommended amplifier power (RMS): 20-150 W/Ch
• LED lighting: Yes
• LED Supply Voltage 10.8-16 VDC
• LED load current @ 14.4 VDC 150 mA
• Operating temperature range: 0° to 50° C
• Voice coil diameter: 1.18"
• Cone material: Polypropylene cone with cloth surround
• Tweeter type: Aluminum dome
• Compass-safe distance: 310 cm
• Mounting diameter clearance: 135 mm
• Mounting depth clearance: 67 mm
